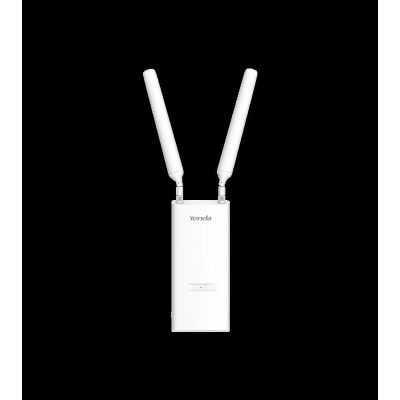

Tenda OAP1200 Access Point 802.11AC Indoor/Outdoor Wi-Fi

OAP1200

Access Point 802.11AC Indoor/Outdoor Wi-Fi

• Impermeabile IP65
• Gestione cloud Tenda CloudFi
• PoE 802.3af e PoE passivo 24V0.5A
• 1*porta Gigabit Ethernet
• 300 Mbps (2,4 GHz) + 867 Mbps (5 GHz)

L'access point OAP1200, dual-band gigabit per interni/esterni, offre una velocità di trasmissione dati simultanea fino a 1167 Mbps. Dotato di 2 antenne omnidirezionali ad alto guadagno, OAP1200 offre un raggio di copertura massimo di 200 metri. OAP1200 può essere installato sia a parete che attorno a un palo. OAP1200 può soddisfare diverse esigenze collegando antenne di specifiche diverse ai connettori RP-SMA standard. Grazie al contenitore IP65, OAP1200 è progettato per la copertura wireless in fabbriche, magazzini e altri ambienti esterni difficili.

Product Information
Model
OAP1200

Category
Outdoor AP

Dimension
194.7*83*42.1 mm

Hardware Specifications
Interface
One 10/100/1000 Mbps Ethernet Port (PoE)

Button
1*Reset

LED indicator
1 x SYS

Maximum Power Consumption
11.5w

Power Supply
802.3af & 24V 0.5A Passive PoE

Max. Number of Clients
256

Recommended Clients
50

Antenna Gain
5dBi

2.4GHz maximum power
• CE: <20 dBm (2.4 GHz, EIRP)
• FCC: <26dBm (2.4 GHz)

5GHz maximum power
• CE: <23 dBm(5 GHz, EIRP)
• FCC: <26dBm(5 GHz)

Reception Sensitivity
802.11b -93 dBm
2.4 GHz 802.11n (MCS7) -73dBm
5 GHz 802.11a -93 dBm
5 GHz 802.11n (MCS7) -74 dBm

Wireless Specifications
Frequency Range
2.4GHz&5GHz

Standard&Protocol
802.11a/b/g/n/a/ac(wave2)

Maximum wireless speed
2.4GHz: 300Mbps
5GHz: 867Mbps

Bandwidth
20MHz/40MHz/80MHz

Software Specifications
Operating Mode
AP/Client+AP

Max. No. of SSID
2.4GHz: 8
5GHz: 4

Hide SSID
Supported

OFDMA
Supported

Beamforming
Supported

Fast roaming（802.11k/v/r）
Supported

WEP
Supported

WPA-PSK
Supported

WPA2-PSK
Supported

WPA
Supported

WPA2
Supported

Access control
Supported

Adjustable power transmit
Supported

Automatic channel
Supported

AP isolation
Supported

Guest network
Supported

Connected clients control
Supported

RSSI Threshold
Supported

Weak signal terminal elimination
Supported

Prioritize 5 GHz
Supported

VLAN tagging for SSID
Supported

LED control
Supported

MU-MIMO
Supported

Diagnostics tool
Supported

Reboot at specified interval
Supported

Scheduled reboot
Supported

Device management
Local Web Management
Tenda CloudFi Cloud Management
Tenda CloudFi APP Management
Tenda Gateway Management（G300-F\G0-8G-PoE\G0-5G-PoE\G1）

System logs
Supported

Firmware upgrade
Supported

Reboot
Supported

Reset
Supported

Backup configuration
Supported

Restore configuration
Supported

Others
Default address
tendawifi.com
10.16.16.169

Operation Temperature
-30℃ ~ 50℃

Operating Humidity
10%~90% non-condensing

Storage Temperature
-30℃ ~ 70℃

Storage Humidity
10%~90% non-condensing
