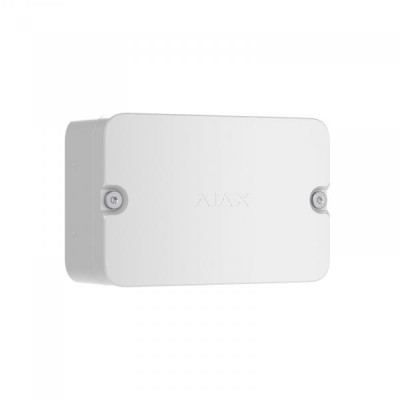

Ajax EN54 I/O Module (2X2) white - Modulo Integrazione terze parti

Sizes: dddd
Box: 2
Color: Bianco
Certificate: CE
Comp. brand:

Avvisami quando disponibile

Consegne Rapide e Sicure con i migliori Corrieri Internazionali

Contattaci

Politiche per i resi
Per Ogni reso e assistenza scrivere a: marketplace@megaram.it

Ajax EN54 I/O (2X2) Jeweller | 124590.280.WH1 | 2 INGRESSI E 2 USCITE

Il modulo wireless Ajax EN54 I/O (2X2) Jeweller, in colore bianco, consente l’integrazione rapida e sicura di dispositivi di terze parti in un sistema antincendio Ajax, come luci di emergenza, serrature elettriche o sistemi di ventilazione. Dotato di due ingressi e due uscite, supporta il protocollo Jeweller per comunicazioni stabili fino a 1.700 m, funziona con batterie interne per 5 anni e si configura in pochi minuti via app Ajax

Specifiche principali:

- 2 ingressi e 2 uscite configurabili via app

- Comunicazione radio Jeweller fino a 1.700 m

- Compatibilità con dispositivi NC, NO, EOL, 2EOL e 3EOL

- Autonomia fino a 5 anni, nessuna alimentazione esterna richiesta

- Conforme EN 54-18 e EN 54-25

- Installazione semplice con scansione QR e cavi ad alto o basso profilo

Scheda tecnica

124590.280.WH1
Capacity
Communication
Jeweller communication technology	Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication Advanced sabotage protection Block encryption featuring a dynamic key Instant notifications Remote control and configuration in Ajax apps
Frequency bands	866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on the sales region.
Maximum effective radiated power (ERP)	up to 20 mW Automatic power control to reduce power consumption and radio interference.
Radio signal modulation	GFSK
Radio communication range	up to 1,700 m up to 5,550 ft Between the device and control and indicating equipment (CIE) or a range extender in an open space.
Encrypted communication	All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping	To prevent radio interference and jamming.
Inputs
Number of input lines for third-party devices	2
Input terminals	Input 1, Input 2 — inputs for connecting third-party wired devices Shield — common input for connecting shields of the cables that connect third-party wired devices
Type of connection	NO, NC, EOL, 2EOL, 3EOL
EOL resistance	0.47 kΩ, 1.2 kΩ, 2.7 kΩ, and 6.2 kΩ resistors Four resistors for each input are included in the complete set.
Length of wired connection to third-party devices	up to 100 m up to 325 ft When 2×1.5 mm2 (16 AWG) fire-resistant cable is used.
Cross-sectional area of the cable	0.4–2.5 mm² (21–13 AWG)
Outputs
Number of input lines for third-party devices	2
Outputs terminals	Output 1, Output 2 — relay outputs for connecting third-party wired devices.
AC operating range	10—250 V~, 5 mA to 10 A (resistive load)
DC operating range	10—30 V⎓, 5 mA to 5 A (resistive load)
Cross-sectional area of the cable	0.4–2.5 mm² (21–13 AWG)
Operating mode	pulse bistable
Pulse duration	from 1 s to 1 h 30 min Pulse duration can be configured for pulse mode in Ajax apps separately for each relay.
Key features
Event types	An Ajax app specifies event types for wired device inputs. The selected type determines the text of alarm notifications and events of the connected device, as well as event codes transmitted to the CMS. A PRO or a user with admin rights can configure the event type in an Ajax app.
Automation scenarios	The scenarios can be configured in Ajax apps separately for each relay.
Fail-safe mode	If the module is offline, discharged, or has hardware problems, it activates the connected devices automatically.
Installation recommendations	The device is designed for indoor use only.
Sabotage protection
Tamper button	Notifications of attempts to detach the module from the surface or open the front lid.
Protection against spoofing	device authentication
Connection loss detection	after 36 s Detection time depends on Jeweller settings
Input monitoring	detection of wired connection loss, short circuits, and malfunctions when the EOL, 2EOL, or 3EOL connection is used Depends on the connection type.
Power supply
Battery	2 × CR123A Pre-installed
Calculated battery life	up to 5 years
Enclosure
Dimensions	116 × 180 × 62 mm 4.57" × 7.09" × 2.44"
Weight	547 g 19.3 oz
Operating temperature range	from 0 °C to +50 °C from 32 °F to 122 °F
Operating humidity	up to 80%
Protection class	IP21C
Flammability rating	UL 94 V-0
Color	White
Complete set	EN54 I/O Module (2X2) Jeweller 2 × CR123A battery (pre-installed) Installation kit 2 × set of 4 EOL resistors Quick start guide
